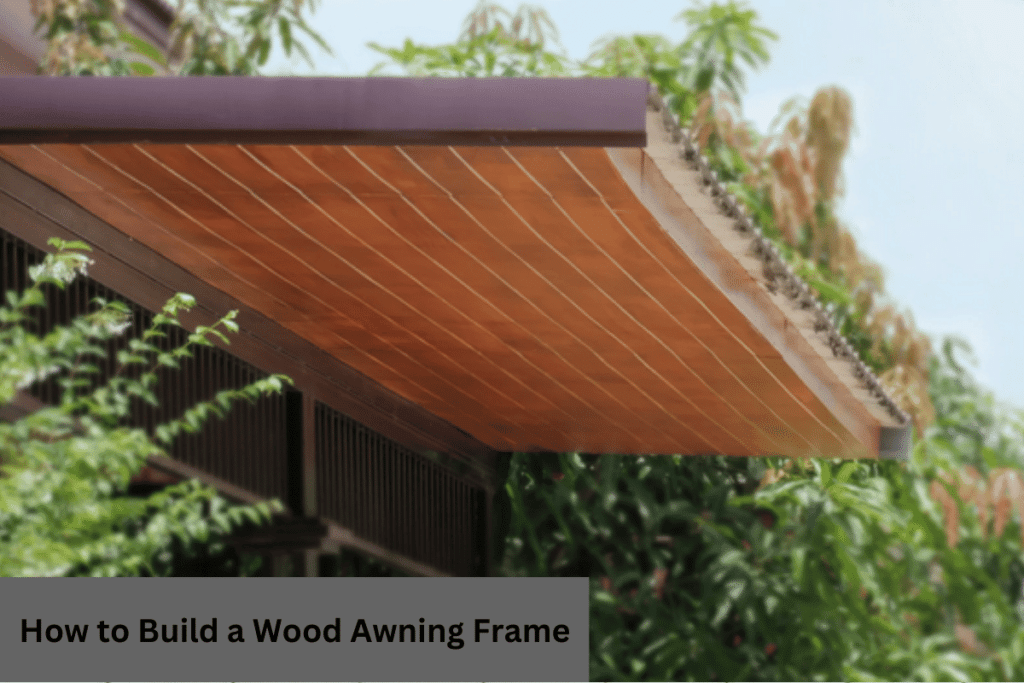

How to Build a Wood Awning Frame

How to Build a Wood Awning Frame

So, you’ve decided to tackle a wood awning frame. Maybe your patio feels like the surface of the sun by noon, or perhaps you’re just tired of your morning coffee getting rained on. Whatever the reason—good news! Building a wood awning frame isn’t rocket science, but it does require some planning, elbow grease, and a solid dose of “measure twice, cut once” energy. At America Green Builders, we’ve helped folks nail projects like this for years (pun fully intended), and today, I’m sharing our playbook. Let’s get into it.


Step 1: Plan Like You Mean It (Because Wingin’ It Won’t Work)

Look, I get it—skipping straight to the fun part (power tools!) is tempting. But trust me: a solid plan saves headaches later. Start by asking:

  • Where’s this awning going? Over a door? Along a patio? Sketch the area and note measurements.
  • What’s your local weather like? If you’re in a hurricane zone, your design needs more muscle than a sunny desert setup.
  • Got permits? FYI, some cities require permits for permanent structures. Check local codes—or let America Green Builders handle the red tape for you.

Pro tip: Use pressure-treated lumber for any part touching your house or the ground. Rot-resistant wood like cedar or redwood? Even better. At America Green Builders, we swear by cedar for its durability and looks—though your wallet might side-eye you a bit.


Step 2: Gather Your Tools and Materials (No, Duct Tape Isn’t on the List)

Here’s where the magic happens. You’ll need:

Tools:

  • Circular saw or miter saw
  • Drill/driver
  • Level (the longer, the better—no one wants a lopsided awning)
  • Clamps (because third hands don’t exist)
  • Ladder

Materials:

  • 2×4 or 2×6 lumber (quantity depends on your design)
  • Galvanized screws (3” for framing, 1.5” for brackets)
  • Metal L-brackets
  • Concrete anchors (if attaching to masonry)
  • Exterior wood sealant

Ever tried cutting a 2×4 without a square? Spoiler: It ends badly. Double-check your angles, and if math isn’t your thing, use a framing square app. Yes, that’s a thing.


Step 3: Build the Frame (Channel Your Inner Bob Vila)

A. Cut Your Lumber

Measure your design dimensions and cut:

  • Header board: This attaches to your house.
  • Rafters: The angled beams that give the awning its slope.
  • Support posts: Vertical pieces that hold the outer edge.

Slope matters! Aim for a 1-2 inch drop per foot for drainage. A flat awning is basically a rainwater bucket.

B. Assemble the Frame

  1. Attach the header: Secure it to your house’s framing (not just siding!) using lag bolts. Hit a stud or use concrete anchors for brick/masonry.
  2. Install rafters: Space them 16-24” apart. Use L-brackets to connect rafters to the header.
  3. Add support posts: Anchor these into concrete footings or sturdy deck blocks.

Quick sanity check: If your frame wobbles like a TikTok dance trend, reinforce those joints.


Step 4: Add the Roof and Finishing Touches (Time to Show Off)

You’ve got options here:

  • Corrugated metal: Lightweight and modern.
  • Wood planks: Rustic charm but needs regular sealing.
  • Polycarbonate panels: Let light in without the UV meltdown.

Secure your roofing material with screws and neoprene washers to prevent leaks. Then, slap on a coat of sealant or paint. At America Green Builders, we’re partial to stain—it lets the wood’s natural grain pop while protecting it.


Common Wood Awning Frame Questions (Answered Without Judgement)

Can I use pine instead of cedar?
Sure, if you enjoy sanding and resealing every year. Cedar’s pricier but lasts decades with minimal fuss.

Do I really need concrete footings?
Unless you want your awning to moonwalk in a storm, yes.

How do I stop water from pooling?
Slope. Is. Everything. Also, consider adding gutters if rainfall’s heavy in your area.


Why Bother DIYing When Pros Exist?

Look, building a wood awning frame is totally doable—if you’ve got time, patience, and a knack for YouTube tutorials. But if the thought of juggling saws, permits, and slope calculations makes you sweat, America Green Builders has your back. We’ve installed enough awnings to know the difference between a “meh” job and one that lasts decades. Plus, we handle the boring stuff (like code compliance) so you can focus on grilling under your new shade.


Final Thoughts: Go Build That Awning (Or Call Us!)

There you have it: a no-nonsense guide to building a wood awning frame that won’t collapse during your first BBQ. Whether you DIY or call in reinforcements, just remember: good design beats brute strength every time. And if you hit a snag? America Green Builders is a phone call away. Now go forth and conquer—preferably without hammering your thumb. 🙂


Need a hand? America Green Builders specializes in custom outdoor structures that blend durability with design. Contact us for a free consultation—because sometimes, DIY stands for “Don’t Involve Yourself.”
